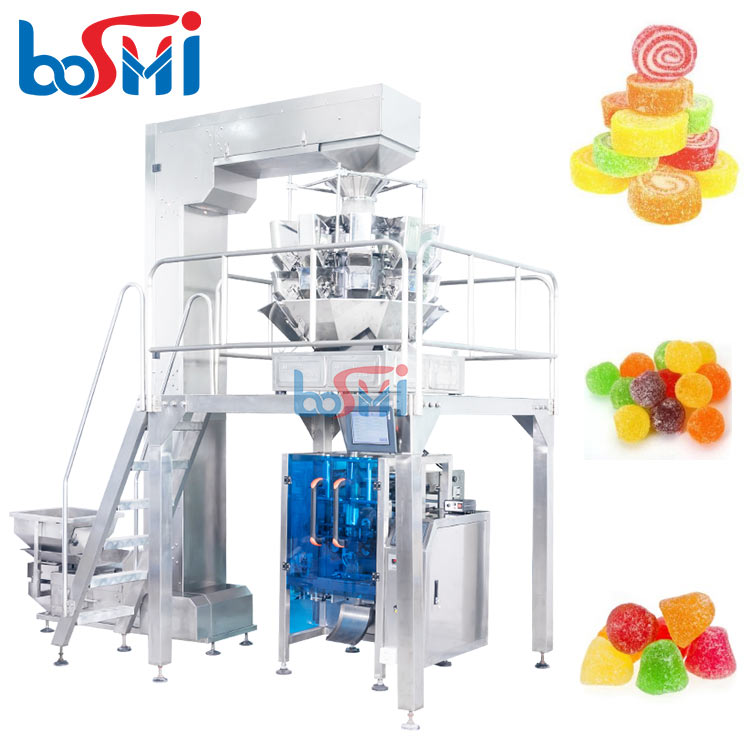

Automatic Multihead Weigher & VFFS Sachet Pouch Packing Machine for Gummy Candies and Chocolate Jelly Beans

Automatic Multihead Weigher & VFFS Sachet Pouch Packing Machine for Gummy Candies and Chocolate Jelly Beans

Get Latest Price

Payment Type:	Western Union,L/C,D/P,D/A,T/T,MoneyGram,CC
Min. Order:	1 set

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Weight (KG): 300

Function: Wrapping, Labeling, Sealing, Gluing, date printing

Application: Food

Packaging Type: Stand-Up Pouch, Bags, Film, Pouch

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Dimension(L*W*H): L 1350 * W 1000 * H 1400 mm

Warranty: 1 Year

Key Selling Points: Easy To Operate

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-420G

Film Width: Max.420mm

Film Thickness: 0.03-0.1mm

Bag Width: 50-200 mm

Bag Length: 50-300 mm

Packing Speed: 10-70 bags/ min

Type Of Sealing: Pillow bag or gusset bag

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Air Consumption: 0.65 mpa

Gas Consumption: 0.3 cubic meter/ min

Condition: New

Packaging & Delivery

Selling Units

set

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Computer combination scale

3) Platform

4) Packing machine host

5) Finished products conveyor( If needed)

Main Features:

1)Simple structure in linear type ,easy in installation and maintain.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with Filling Machine .

Applications:

Suitable ForJelly, Candy, Chocolate, Gummy Bear Candy , Gummy Candy Soft Candy ,Sweet candy, Cotton Candy, Chewing Gun candy ,TabletCandy,Chewing Bubble Gum,Soda Candy , Bubble Gum, etc.

Standard Features:

1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.

>>>Get quotation from us

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

The details of the main parts:

Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.

Full implement the humanizes automatic operation

Computer combination weighter

Automatic calculation combination set weight

Precision electronic sensor, microcomputer,
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.

Viabrator hopper

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.

Install film structure

Use motor delivery the film

The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running

Packing machine touch screen

English and Chinese screen display
Self-development program Level sensor to feed automatically,Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment

Date printer

Support ribbon roll date printer

*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags

Bag forming tubes

Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.

We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.

Mid-sealing structure

The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

Double pulling Film Structure

High quality grinding wheel,
Pull evenly,more beautiful packaging

Cutter sealing device:

Pull rod type sealing structure,stable sealing and make packing speed more fast.

Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.

CE CERTIFICATES:
