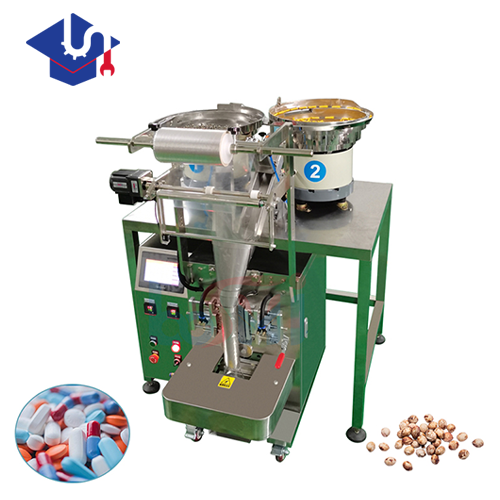

Name: Automatic Hardware Packing Machine Screw Nut Counting Packing Machine1
Uploaded: 2025-02-20T12:44:06+08:00
Description: 1. Efficient and automated production to improve production

$62001-1 Set/Sets

$59002-2 Set/Sets

$5700≥3Set/Sets

Payment Type:	L/C,T/T,D/P,D/A
Incoterm:	CIF,EXW,FOB
Transportation:	Ocean,Land,Air
Port:	FOSHAN

power:

3kw
50w
750w

Option:

BS-320B-2
Date printer
Motor

Contact Now

Product Description

Product Attributes

Model No.: BS-320B

Brand: BOSHI

Production Capacity: 20bag/min, 6bag/min, 40bag/min, 25bag/min, 50bag/min, 30bag/min

Weight (KG): 220

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Bags, Film, Foil

Packaging Material: Plastic, Paper

Driven Type: Electric

Voltage: 220v

Place Of Origin: Guangdong, China

Dimension(L*W*H): L1100mm*W1800mm*H1460mm

Warranty: 1 Year

Core Components: Motor

Model: BS-320B-2

Film Width: Max.320mm

Bag Size: L35-150m,W25-150mm

Packing Speed: 1-40 bags/min

Type Of Sealing: Pillow bag or 3-side or 4 side bag

Air Consumption,Voltage Power: 0.4-0.8Mpa AC220V,50Hz, 3KW

Machine Dimensions: L1100mm*W1800mm*H1460mm

Machine Weight: N.W. 180kg G.W.350kg

Feeding Method: Vibrating plate

Equipment Appearance: stainless steel

Type: Multi-Function Packaging Machine

Warranty Of Core Components: 1 Year

Status: New

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

Automatic Hardware Packing Machine Screw Nut Counting Packing Machine1



Product Description

1. Efficient and automated production to improve production capacity

Mechanized operation throughout the entire process: The equipment integrates functions such as automatic bag taking, bag opening, counting, filling, sealing, and coding. The packaging speed can reach 30-70 bags/minute (depending on the machine configuration), significantly replacing tedious operations such as manual counting and bagging

Double vibration plate coordination: Some models use a double vibration plate or multi-vibration plate design to reduce idle time by alternating feeding, and the efficiency is more than 1.5 times higher than that of a single plate, which is especially suitable for large-scale production needs

2. Accurate counting and low loss

Three-level vibration feeding control: Through fast, medium, and slow speed adjustment, combined with fiber counting sensor feedback, the counting error can be controlled within ±0 (within 100 pieces) or ±0.1% (thousands of pieces), ensuring the accuracy of the number of each bag.

Anti-breakage bag and packaging material circulation: Prefabricated bags that have not been successfully opened can be automatically recycled and reused. Combined with the anti-drip design, the comprehensive material loss rate is less than 1%
