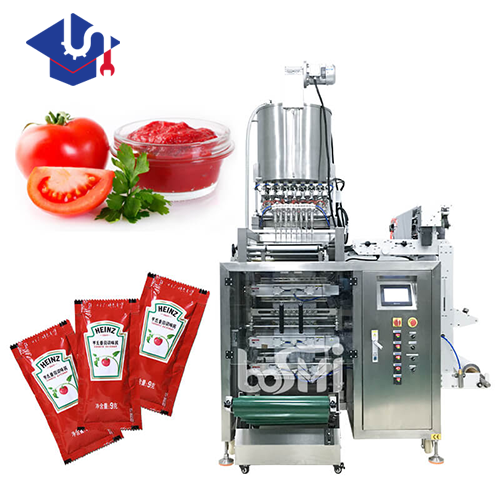

Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine
Tomato Sauce Mayonnaise Multi-Function Packaging Machine

Tomato Sauce Mayonnaise Multi-Function Packaging Machine

$118001-29 Set/Sets

$7500≥30Set/Sets

Payment Type:Western Union,D/P,D/A,T/T,MoneyGram,CC VISA ,Cash
Incoterm:FOB,CIF,EXW
Transportation:Ocean,Land,Air
Port:Guangzhou or Foshan port
power:
Option:
Product Attributes

Model No.BS-300BL

BrandBOSHI

Machinery Capacity4000bph, 8000bph, 12000bph, 6000bph, 400bph, 20000bph, 16000bph, 500bph, 2000bph, 1000bph

ApplicationFood

Packaging TypeBags, Pouch

Voltage220/380v

Brand NameBoshi multi lane packing machine

Dimension(L*W*H)L1385*W918*H2005mm

Warranty1 Year

Key Selling PointsHigh-Accuracy

Filling MaterialMilk

Filling Accuracy1

Core ComponentsMotor

ModelBS-300BL

Film WidthMax.300mm

Film Thickness0.07-0.1mm

Bag Width17-70 mm

Bag Length50-180 mm

Packing SpeedEach lane 30-50 bags/ min

Type Of SealingPillow bag ,3 /4 side seal bag,Special shaped bag

Packing MaterialOPP/CPP, OPP/CE,PET/PE etc.

Air Consumption0.8 mpa

Power50HZ/AC220V/380V/3.5kw

TypeFilling Machine

Warranty Of Core Components1 Year

Weight400 KG

Packaging & Delivery
Selling Units : Set/Sets
Package Type : 3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

Multi-function Multi Line Sachet Tomato Sauce Packaging Machine 6 lane Vffs Mayonesa Liquid Packing Machine1
Product Description
Machine Advantages :
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,
printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is
resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.

Bag Types

Applications:
Suitable for filling and packing varieties of products:
This type of machine can make pillow bag and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste,tablet, candy, solid, stick, large solid and irregular products
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with Filling Machine .
Machine Details
Forming bag structure
*We will according to your needed bag type to make different bag forming tubes.
Touch screen
*Adjustment of bag deviation in the touch screen
Temperature Table
*Monitor and adjust sealing temperature, also adjustable on the touch screen

Heat sealing structure

*Use stable heating sealing the bag, make bags firm and beauty.
*It suitable for many different film materials.

Feeding film structure

*Servo motor control the film feeding.The clamping film adopts the air-expansion shaft locking form, make it more convenient, fast and reliable for film replacement.

PLC & Electricity box

*Mitsubishi/ Siemens PLC control *With stable reliable high accuracy output *Panasonic servo motor driver pulling film
Material Hopper
*Materials will be fill in hopper
*Hopper capacity can be customized
*With smart sensor to detected the material filling situation .
Multilane liquid filling tubes
*A servo motor control and adjusts the stroke of the pump body to adjust the material bag weight.
End Seal Cutter Area
*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.
Packaging details:
1. Injection of powder to be packed
2. Transport plastic film
3. Print date
4. Bag making and liquid filling
5.Complete packaging, cutting and conveying finished products
