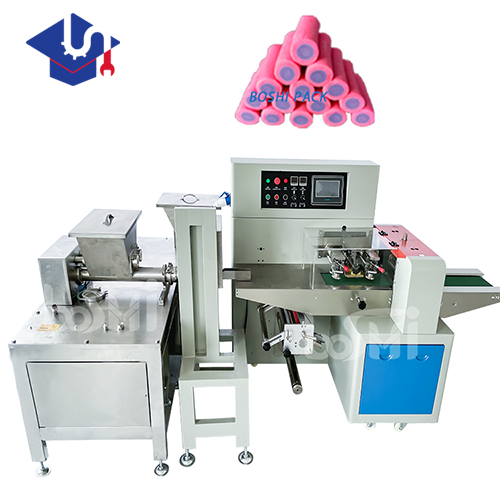

Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine
Hardener Repair Resin AB Epoxy Putty Packing Machine

Hardener Repair Resin AB Epoxy Putty Packing Machine

$105001-1 Set/Sets

$104002-2 Set/Sets

$9000≥3Set/Sets

Payment Type:L/C,T/T,D/P,D/A,MoneyGram
Incoterm:FOB,CIF,EXW,DDP,DDU
Transportation:Ocean,Land,Air
Port:Foshan or Guagnzhou
power:
Option:
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Other information
Product Attributes

Model No.: BS-350XL

Brand: BOSHI

Production Capacity: 20bag/min, 25bag/min, 15bag/min, 50bag/min, 30bag/min

Weight (KG): 1000

Function: Wrapping, Sealing, extruding

Application: Food

Packaging Type: Bags, Film, Foil

Voltage: 110V/ 220V/ 380V

Dimension(L*W*H): L2300* W950* H1300 mm

Warranty: 1 Year

Core Components: Motor

Model: BS-350XL

Package Cut Length: 65-300mm

Product Width: max.165mm

Product Height: Max.60mm

Film Thickness: 40-80μm

Packaging Material Width: max.350mm

Film Weight: max. 25KG

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Power Supply: 380V,50HZ

Power Usage: 5.5kw- 7kw

Warranty Of Core Components: 1 Year

Packaging & Delivery
Selling Units : Set/Sets
Package Type : 3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Automatic AB Epoxy Putty Stick Packing Machine India Hardener Repair Resin Epoxy Putty Extruder Packing Machine1
Product Description
Automatic AB epoxy putty stick packing machine India hardener repair resin epoxy putty extruder packing machine

Intelligent control and convenient maintenance
Human-machine interaction interface: preset formula (A/B ratio, filling volume, temperature) on the touch screen, supporting storage of multiple sets of parameters.
Fault warning system: automatically detects problems such as blockage, abnormal pressure, and ratio deviation and alarms to shorten downtime.
Quick maintenance design: the pipeline adopts quick-connect joints, and the material cylinder can be tilted to clear the material, reducing the difficulty of cleaning.
Applicable scenarios
Chemical adhesive companies: production of two-component products such as epoxy AB glue, structural glue, and sealant.
Electronics/automotive industry: packaging electronic potting glue, automotive adhesives and other precision industrial glues.
Customized packaging needs: adapt to small batch and multi-variety production, such as scientific research glue or special glue.
Potential considerations






Extruder head

*Use food grade extruder mould
*Support to make square/round shape and pattern shape
*Easy to change different size extrude head

Mixing screws

*Can stir all the soft materials to extrude tube.
*Use thickness sus304
With strong engulfing ability


Extruder hopper

This picture including extrude hopper+mixing screws+extrude screws+extrude mould

Extruder hopper

Just need to put your items in this hopper, machine will auto
stir and extrude the shape you need.

Double extrude screws

Look here!! We use double extrude screws, not single screw! *.Increase extrusion capacity, high efficiency *.Increase stability and ensure product quality *.Suitable for multiple products
*Can according to your item width to make bigger

End Seal Cutter Area

*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.
*Angle inserting device is selected to make the bag beautiful and avoid curling at the sealing position.

Dough/clay /material cutter

Each material will be have it's own cutter.
Some material is sticky ,then will have teflo cutter.
We will according to your material to match suitable cutter to you.

Extrude head

*Use stainless steel 314 extruder mold.
*Support to make square shape , round shape and pattern shape.
*Easy to change different size extrude head

Install Film structure

*Motor Control Film Structure
*High quality grinding rollers,Pull evenly,more beautiful packaging
*Film position can be easily adjusted by hand shank

Mid- sealing structure

* With pulling film wheels+high quality copper +pressing wheels
*After this part , back bag sealing well.
