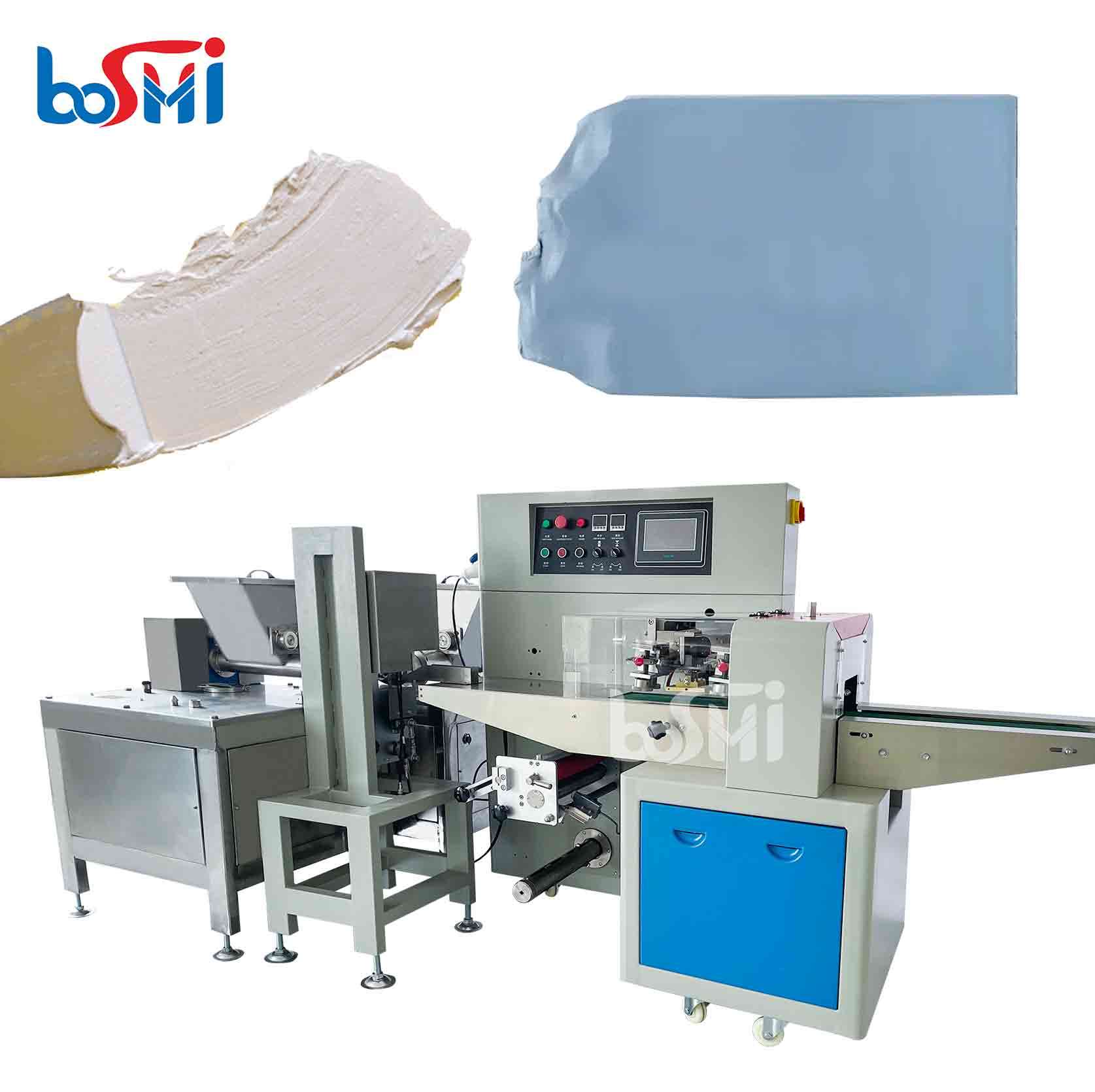

Wear Resistant Epoxy Putty Extruder Machine for Wall Adhesive Packing

Wear Resistant Epoxy Putty Extruder Machine for Wall Adhesive Packing

$105001-5 set

$101006-9 set

$3500≥10set

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,CC
Min. Order:	1 set

Contact Now

Product Description

Product Attributes

Product Description

Product Attributes

Condition: New

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Voltage: 220V

Power(W): 7kw

Weight: 1000 KG

Dimension(L*W*H): L2250XW1000XH1350mm

Warranty: 1 Year

Key Selling Points: Long Service Life

Model: BS-350XL

Package Cut Length: 65-200mm

Product Width: max.165mm

Product Height: max.60mm

Film Thickness: 40-80μm

Packaging Material Width: max.350mm

Film Weight: max. 25KG

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Power Supply: 380V,50HZ

Power Usage: 5.5kw-7kw

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC, Bearing, motor, Gear

Applicable Industries: epoxy sculpt clay packing machine, concentric putty packing machine, epoxy putty packing machine, sculpting compound packing machine, resin putty packing machine, adhesive putty packing machine, aqua repair putty epoxy packing machine

Product Description

A+B epoxy putty extruder machine wear resistand wall putty epoxy stick adhesive putty wear resistand putty packing machine

BS-350XL suitable to pack epoxy putty，sculpting compound，2 part epoxy putty，AB epoxy putty，epoxy sculpt clay resin and hardener putty，concentric putty，resin putty,adhesive putty,metal repair putty,wall putty. Clay etc.

PRODUCT ADVANTAGES:

* Full automatic soft materials production line with extruding and packing functions, Fast speed for cutting and packing. * Touch screen (for extruder & packing machine) combine two machine functions in one , make machine more smart. * Contact parts use food grade SUS304 stainless steel,save and clean. * Reduce manual operation and avoid touching products, no pollution and de-formation. *Accurate length cutting, high gram precision. '*Machine with stable performance,easy operation. * Independent PID temperature control, suitable for different film roller . * With auto alarm function,any alarm will show on touch screen

>>>Get Latest Price

Model	BS-350XL
Package cut length	65-200mm
Product width	max.165mm
Product height	max.60mm
Film thickness	40-80μm
Packaging material width	max.350mm
Film weight	max. 25KG
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
power supply	380V,50HZ
Power usage	5.5kw-7kw
Type of sealing	Pillow bag
Cutter type	Rotary cutter
Motor configuration	Dual frequency
Machine weight	1000kg
Machine dimensions	L2250XW1000XH1350mm

Extruder head

*Use food grade extruder mould

*Support to make square/round shape and pattern shape

*Easy to change different size extrude head

Mixing screws

*Can stir all the soft materials to extrude tube.

*Use thickness sus304

With strong engulfing ability

Extruder hopper

This picture including extrude hopper+mixing screws+extrude screws+extrude mould

Extruder hopper

Just need to put your items in this hopper, machine will auto

stir and extrude the shape you need.

Double extrude screws

Look here!! We use double extrude screws, not single screw! *.Increase extrusion capacity, high efficiency *.Increase stability and ensure product quality *.Suitable for multiple products

*Can according to your item width to make bigger

End Seal Cutter Area

*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.

*Angle inserting device is selected to make the bag beautiful and avoid curling at the sealing position.

Dough/clay /material cutter

Each material will be have it's own cutter.

Some material is sticky ,then will have teflon cutter.

We will according to your material to match suitable cutter to you.

Extrude head

*Use stainless steel 314 extruder mold.

*Support to make square shape , round shape and pattern shape.

*Easy to change different size extrude head

Install Film structure

*Motor Control Film Structure
*High quality grinding rollers,Pull evenly,more beautiful packaging
*Film position can be easily adjusted by hand shank

Mid- sealing structure

* With pulling film wheels+high quality copper +pressing wheels

*After this part , back bag sealing well.

>>>>>>Get package sample from us

About US:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:

Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Pillow Packing Machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
