Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines
Frozen Foods and Seafood Packing Machines

Frozen Foods and Seafood Packing Machines

Get Latest Price
Payment Type:L/C,Western Union,D/P,D/A,T/T,MoneyGram,CC
Min. Order:1 set
Power:
Option:
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 15bag/min, 50bag/min, 30bag/min

Weight (KG): 1000

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Bags, Film, Foil

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Dimension(L*W*H): L 1350 * W 1000 * H 1400 mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-420G

Packing Speed: 5-60 bags/ min

Support Bag Size: L(50-300 )*W(50-200 )mm

Bag Type: Pillow bag(back seal) /3side seal /4 side seal

Film Width: ≤520mm

Measure System: 10/14 heads weigher weighting

Measuring Range (max): 6000 ml

Packing Accuracy: ±0.5-1.0 g

Film Thickness Range: 40-80um

Power: 220 V /380 V ,50 HZ/60 HZ,2.2KW

Type: Multi-Function Packaging Machine

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other

Showroom Location: None

Condition: New

Warranty Of Core Components: 1 Year

Packaging & Delivery
Selling Units : set

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Automatic Vertical Salad Fruit Fresh Vegetable Bagging Machine Weight Bagging Vegetable Packing Machine1
Product Description

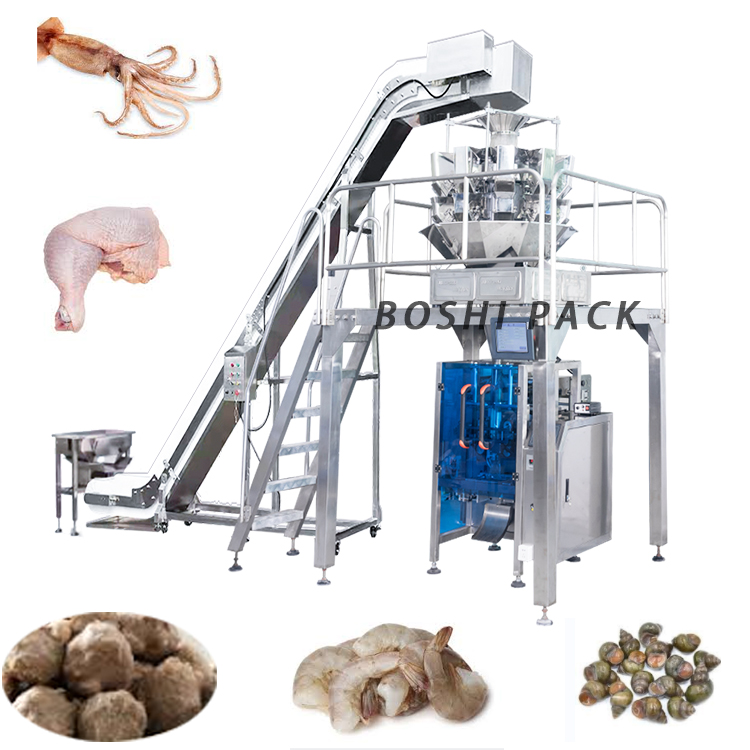

Suitable for Meatball, macaroni, frozen chicken, frozen wing, salad vegetable,baby carrots,hamburgers, popcorn, fresh vegetable,dry pasta,oats, puffed food, french fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware and medicine such particle, platy, strip and irregular shape.

Standard Features:

1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface
of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production
efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene,
PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting
automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.

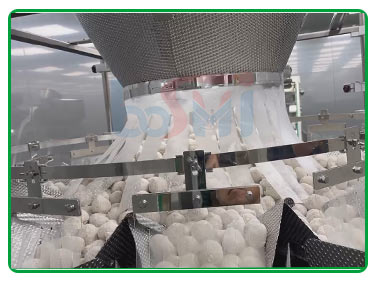

Computer combination weighter
Automatic calculation combination set weight
Precision electronic sensor, microcomputer,
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.

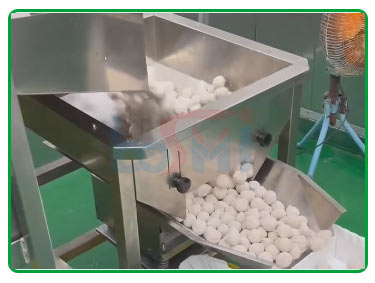

Viabrator hopper
Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.





Packing machine touch screen
English and Chinese screen display
Self-development program Level sensor to feed automatically,Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment




Install film structure
Use motor delivery the film
The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running



Z Type feeding elevator

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.



Bag forming tubes
Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.




Mid-sealing structure
The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.
Double pulling Film Structure
High quality grinding wheel,
Pull evenly,more beautiful packaging


Cutter sealing device:
Pull rod type sealing structure,stable sealing and make packing speed more fast.
Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.




Date printer

Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags

The details of the main parts:
Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation

>>>Get quotation from us

Model
BS-420G
Film width
Max.420mm
Film thickness
0.03-0.1mm
Bag width
50-200 mm
Bag length
50-300 mm
Packing speed
10-70 bags/ min
Type of sealing
Pillow bag,3 or 4 side seal and gusset bag
Packing material
OPP/CPP, OPP/CE,PET/PE etc.
Air consumption
0.65 mpa
Gas consumption
0.3 cubic meter/ min
Machine dimensions
1080*1300*1400 mm
Machine weight
600 kg
Multi-weigher
Weighting and filling system
Head weighers
Weighting range
10-1500g
(Different weight range need to change different auger)
Accuracy:
Bias:0.5g
Filling speed:
65bags/min
Hoper volume
1.6/2.5L
Auger Total power:
1.0kw
Weight
380KG
CONTACT US TO GET LATEST PRICE

About Us:
FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)




FAQ:
1.Why we choose you?
* Professional team 24 hours provide service for you
*13 months warranty,any main machine parts can be replacement
* Oversea service is provided

2.What is your payment term?
We support TT,Credit Card,Western Union,etc.

3.Are you manufacturer or trading company?
We are 100% real packing machine manufacturer.Any time online video will be supported.

4.You have engineer?can you design machine according my special product?
My boss is our biggest engineer with 15 years packing machine experience.If needed,we can arrange online video with you and our engineer.That will be more efficient communication.

5.How to check your machine quality after machine finished?
Machine photos and test videos will be provided to before your balance. Also welcome you and third party to detect our machine.
6.How can I trust you will send machine to us after full payment?
We are a real factory with business license and certificate. Alibaba already let staff to inspect our factory.You pay via Alibaba trade assurance service,if we receive your payment,didn’t sent machine to you.Alibaba will off our online store and sent all your money back.
