Multi-Weigher Scale Packaging Machine for Rice, Salt, Wheat, Sugar & Brown Sugar (250g-1kg)

Multi-Weigher Scale Packaging Machine for Rice, Salt, Wheat, Sugar & Brown Sugar (250g-1kg)

Get Latest Price

Payment Type:	Western Union,L/C,D/P,D/A,T/T,MoneyGram,CC
Min. Order:	1 set
Port:	guangzhou or foshan

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Production Capacity: 20bag/min, 25bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min

Weight (KG): 1800

Function: Filling, Labeling, Sealing

Application: Food

Packaging Type: Bags, Film, Foil, Pouch

Packaging Material: Plastic, Paper, Laminated Film

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220v

Place Of Origin: China

Brand Name: BOSHI Packaging machine

Dimension(L*W*H): 4020*820*1450MM

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-420G

Packing Speed: 5-60 bags/ min

Support Bag Size: L(50-300 )*W(50-200 )mm

Bag Type: Pillow bag(back seal) /3side seal /4 side seal

Film Width: ≤420mm

Measure System: 2/4/10/14 heads weigher weighting

Measuring Range (max): 6000 ml

Packing Accuracy: ±0.5-1.0 g

Film Thickness Range: 40-80um

Power: 220 V /380 V ,50 HZ/60 HZ,2.2 KW

Type: Multi-Function Packaging Machine

Showroom Location: Italy, France, Germany, Viet Nam, Peru, Saudi Arabia, Indonesia, Spain, Thailand, Morocco, South Korea, Chile, UAE, Colombia, Romania, Bangladesh, South Africa, Ukraine, None

Condition: New

Warranty Of Core Components: 1 Year

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Energy & Mining, brown sugar packaging machine, sugar packing machine, salt packing machine, sugar, salt, sugar packaging machine, Salt packaging machine

Packaging & Delivery

Selling Units	:	set
Package Type	:	3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

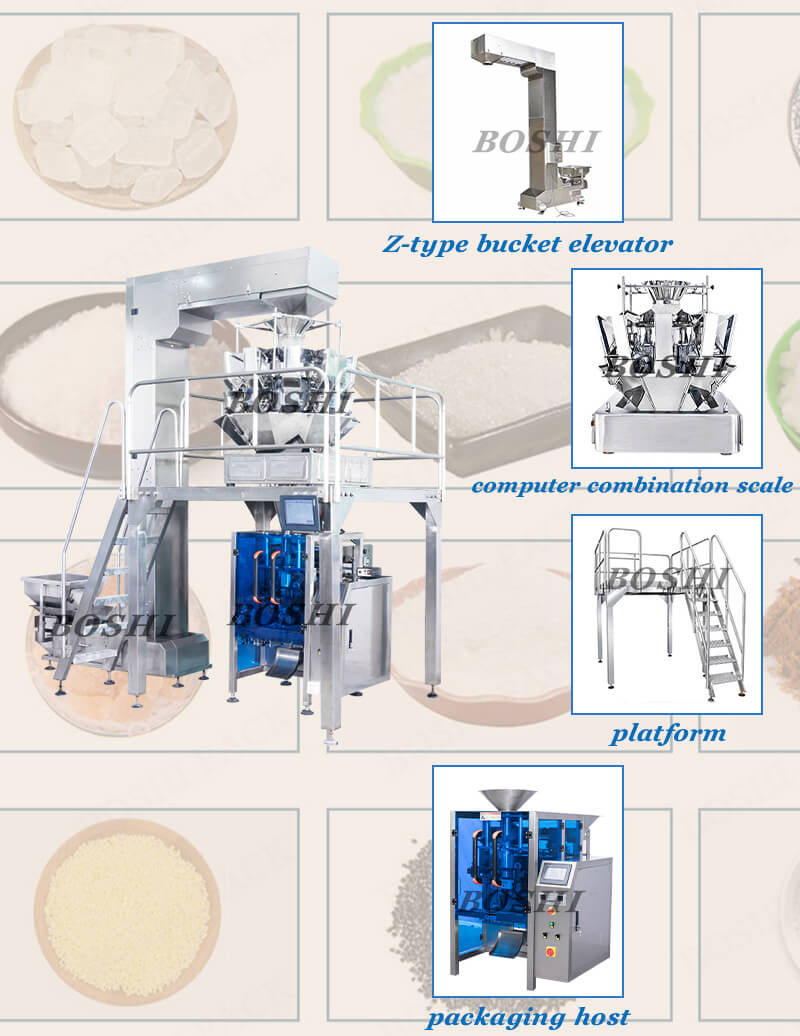

Whole machine main including 4 parts:

1) Z type bucket elevator

2) Computer combination scale

3) Platform

4) Packing machine host

5) Finished products conveyor( If needed)

Main Features:

1)Simple structure in linear type ,easy in installation and maintain.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with Filling Machine .

Standard Features:

1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.

>>>Get quotation from us

Technical Parameters:

Model	BS-420G
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Multi-weigher
Weighting and filling system	Head weighers
Weighting range	10-3000g (Different product have different weighting range )
Accuracy:	Bias:+-0.5g
Filling speed:	65bags/min
Hoper volume	1.6/2.5L/5L
Total power:	1.0kw
Weight	380KG

The details of the main parts:

Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.

Full implement the humanizes automatic operation

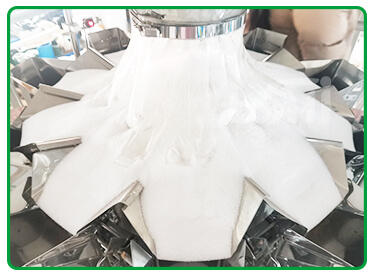

Multi-head weigher

Must use 316 stainless steel to anti-rust

When the weighing hopper under the storage hopper is empty after discharging, the storage hopper is opened, the material is discharged to the weighing bucket, and the weighing bucket starts to weigh.

Packing machine touch screen

English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment

Viabrator hopper

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.

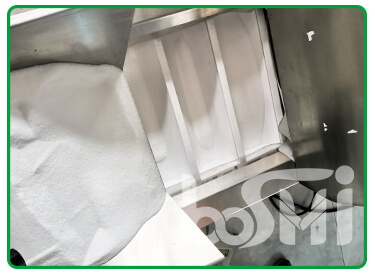

Z Type feeding elevator

316 stainless steel
Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.

Cutter sealing device:

Pull rod type sealing structure,stable sealing and make packing speed more fast.

Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.

Date printer

Support ribbon roll date printer

*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags

Install film structure

Use motor delivery the film

The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running

Bag forming tubes

Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.

We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.

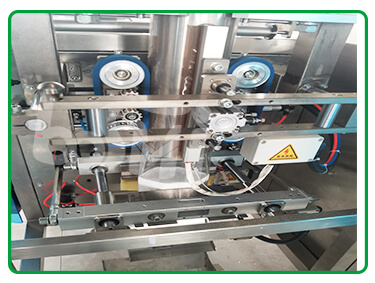

Mid-sealing structure

The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

Double pulling Film Structure

High quality grinding wheel,
Pull evenly,more beautiful packaging

FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow Packing Machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);

Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
