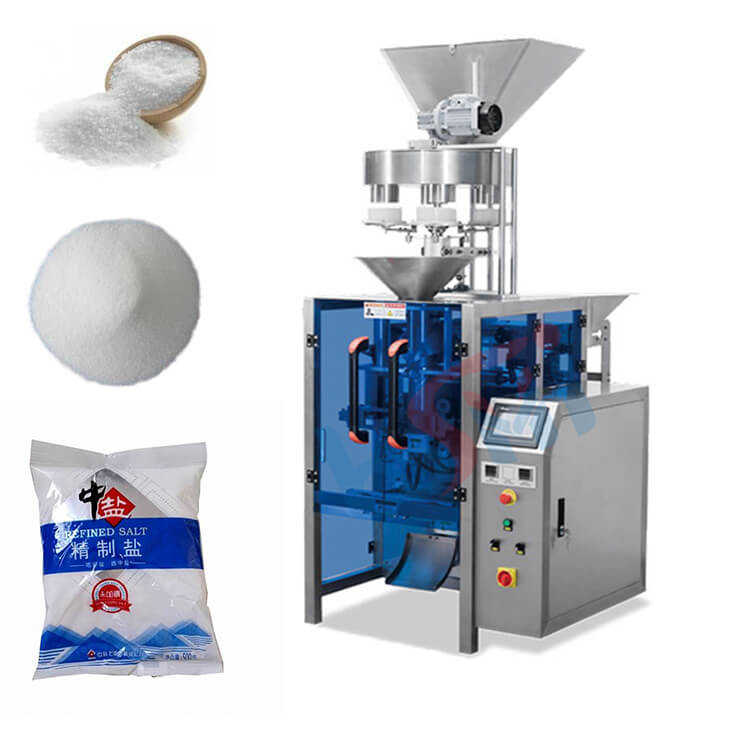

Automatic Salt Packaging Machine for Sachets - 100g to 1kg

Automatic Salt Packaging Machine for Sachets - 100g to 1kg

Get Latest Price

Min. Order:

1 set

Power:

2.2kw

Option:

BS-420V

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 15bag/min, 50bag/min, 30bag/min

Weight (KG): 800

Function: FILLING, Wrapping, Labeling, Sealing, Date printing

Application: Food

Packaging Type: Bags, Film, Foil, Pouch

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Dimension(L*W*H): L 1350 * W 1000 * H 1400 mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-420V

Film Width: Max.420mm

Film Thickness: 0.03-0.1mm

Bag Width: 50-200 mm

Bag Length: 50-300 mm

Packing Speed: 10-70 bags/ min

Type Of Sealing: Pillow bag or gusset bag

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Air Consumption: 0.65 mpa

Gas Consumption: 0.3 cubic meter/ min

Type: Multi-Function Packaging Machine

Showroom Location: None

Condition: New

Warranty Of Core Components: 1 Year

Applicable Industries: hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other, vertical granule packing machine

Packaging & Delivery

Selling Units	:	set
Package Type	:	3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

Multihead Weigher Red Beans Jelly Beans Packaging Machine Scale Kidney Cocoa Soya Coffee Bean Packing Machine1



Product Description

Model	BS-420V
Measure system	Volumetric cup
Measuring range	20ml-1200ml(need to change the cups)
Cup capacity	80L
Accuracy	+/-1%
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag,etc.
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Power	2KW
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg

Standard Features:

1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.

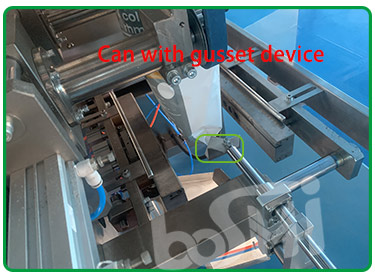

6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.

The details of the main parts:

Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.

Full implement the humanizes automatic operation

Packing machine touch screen

English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment

Viabrator hopper

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.

Install film structure

Use motor delivery the film

The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running

Date printer

Support ribbon roll date printer

*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags

Bag forming tubes

Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.

We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.

Mid-sealing structure

The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

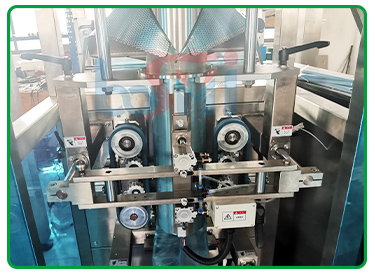

Double pulling Film Structure

High quality grinding wheel,
Pull evenly,more beautiful packaging

Cutter sealing device:

Pull rod type sealing structure,stable sealing and make packing speed more fast.

Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.

About Us:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);

Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)

Vertical linear multihead weigher packaging machinery potato chips sugar rice packing machine multi-function packaging machines Vertical linear multihead weigher packaging machinery potato chips sugar rice packing machine multi-function packaging machines

FAQ:

1.Why we choose you?

* Professional team 24 hours provide service for you

*13 months warranty,any main machine parts can be replacement

* Oversea service is provided

2.What is your payment term?

We support TT,Credit Card,Western Union,etc.

3.Are you manufacturer or trading company?

We are 100% real packing machine manufacturer.Any time online video will be supported.

4.You have engineer?can you design machine according my special product?

My boss is our biggest engineer with 15 years packing machine experience.If needed,we can arrange online video with you and our engineer.That will be more efficient communication.

5.How to check your machine quality after machine finished?

Machine photos and test videos will be provided to before your balance. Also welcome you and third party to detect our machine.

6.How can I trust you will send machine to us after full payment?

We are a real factory with business license and certificate. Alibaba already let staff to inspect our factory.You pay via Alibaba trade assurance service,if we receive your payment,didn’t sent machine to you.Alibaba will off our online store and sent all your money back.

Automatic100g 500g 1kg salt packaging machine sachet inorganic salts grinding bath fine salt packing machine Automatic100g 500g 1kg salt packaging machine sachet inorganic salts grinding bath fine salt packing machine
