Home> Packing Machine> Multi-lane Packing Machine> Multi-lane Powder Packing Machine> Multi Lane VFFS Hydration Machine

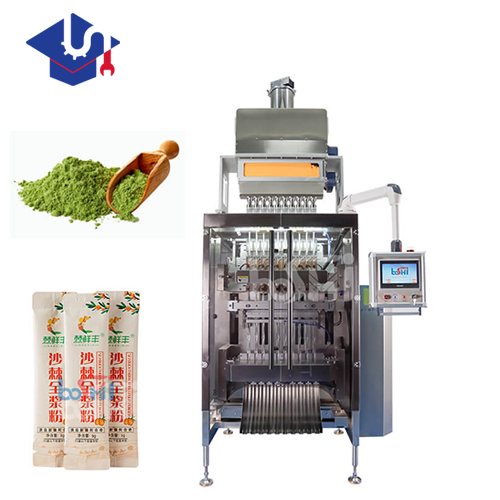

Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine
Multi Lane VFFS Hydration Machine

Multi Lane VFFS Hydration Machine

$158001-29 Others

$9500≥30Others

power:
Option:
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Application: Food

Packaging Type: Bags, Pouch

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220/380v

Place Of Origin: Guangdong, China

Brand Name: Boshi multi lane packing machine

Dimension(L*W*H): L1385*W918*H2005mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Filling Material: Powder

Filling Accuracy: 1

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

After-sales Service Provided: Video Technical Support

Weight (KG): 680

Model: BS-300BP

Film Width: Max.300mm

Film Thickness: 0.03-0.1mm

Bag Width: 20-70 mm

Bag Length: 50-180 mm

Packing Speed: Each lane 20-40 bags/ min

Type Of Sealing: Pillow bag ,3 /4 side seal bag,Special shaped bag

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Air Consumption: 0.8 mpa

Power: 50HZ/AC220V/380V/3.5kw

Packaging & Delivery
Selling Units : set

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Automatic multi lane vffs hydration powder stick pack filling machine 3 lane 5 lane prebiotics powder packing machine1
Product Description
Machine Advantages :
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,
printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is
resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.

Bag Types
Technical Parameters
Model
 BS-300BF
BS-600BF
BS-900BF
Number of Lanes
2-4 Lanes
3-10 Lanes
4-16 Lanes
packaging speed
20--40 cuts per minute/each lane
Bag size
L:50-180mm W:20-70mm
L::50-180mm W:20-95mm
Max.900mm,0.07--0.1mm
Film width film thickness
Max.300mm,0.07--0.1mm
Max.600mm,0.07--0.1mm
Max.900mm,0.07--0.1mm
Measurement method
1. Long screw; 2. Short screw; 3. Short screw + material rejection
30-80um
30-80um
Sealing bag type
Pillow bag, 3 side seal bag, 4 side seal bag, special shape bag
220V 50HZ,2.8KW
220V 50HZ,3KW
Incision form
1. Flat cutting; 2. wave cutting; 3. Rounded cutting; 4. Special-shaped cutting
Full servo motors
Full servo motors
Power supply
1N+PE/50HZ/AC220V/380V/3.5kw
1N+PE/50HZ/AC220V/380V/5.5kw
1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption
0.8 MPA 0.8m3/min
0.8 MPA 0.8m3/min
0.8 MPA 0.8m3/min
Machine dimension
1385*918*2005mm
1685*1300*2005mm
1700*1600*2500mm
Machine weight
400kg
600kg
950kg
Applications:
Suitable for filling and packing varieties of products:
This type of machine can make pillow bag and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste,tablet, candy, solid, stick, large solid and irregular products
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with Filling Machine .
Machine Details
Forming bag structure
*We will according to your needed bag type to make different bag forming tubes.
Touch screen
*Adjustment of bag deviation in the touch screen
Temperature Table
*Monitor and adjust sealing temperature, also adjustable on the touch screen

Heat sealing structure

*Use stable heating sealing the bag, make bags firm and beauty.
*It suitable for many different film materials.

Feeding film structure

*Servo motor control the film feeding.The clamping film adopts the air-expansion shaft locking form, make it more convenient, fast and reliable for film replacement.

PLC & Electricity box

*Mitsubishi/ Siemens PLC control *With stable reliable high accuracy output *Panasonic servo motor driver pulling film
Material Hopper
*Materials will be fill in hopper
*Hopper capacity can be customized
*With smart sensor to detected the material filling situation .
Multilane auger filler machine
*Each lane, with one set servo motor drive screw &stirring motor, stable and accurate .

End Seal Cutter Area
*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.
Packaging details:
1. Injection of powder to be packed
2. Transport plastic film
3. Print date
4. Bag making and powder filling
5.Complete packaging, cutting and conveying finished products

>>>Get quotation from us
CE CERTIFICATES:


About Us:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Multi-lanes packing machine (For powder ,liquid ,granules product )
Pillow Packing Machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
