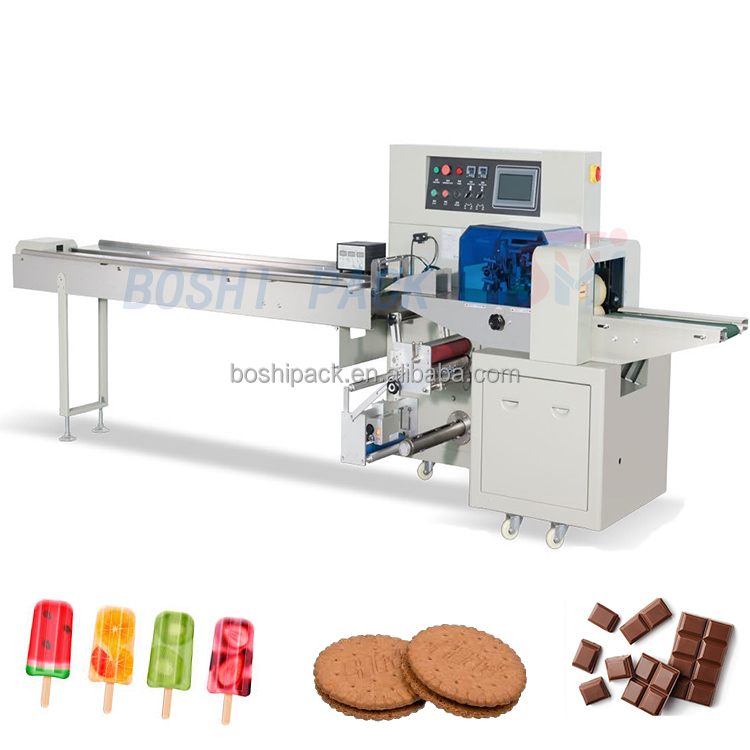

Boshi Brand Lollipop Candy Pillow Packaging Machine

$42001-5 Others

$35006-10 Others

$2800≥11Others

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Weight (KG): 680

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Bags, Film

Packaging Material: Plastic

Automatic Grade: Semi-Automatic

Driven Type: Electric

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Dimension(L*W*H): 3800*850*1500mm

Warranty: 1 Year

Key Selling Points: Easy To Operate

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

After-sales Service Provided: Video technical support, Online support, Free spare parts

Model: BS-350 X

Film Width: Max.350mm

Film Thickness: 0.03-0.1mm

Bag Width: 50-160 Mm

Bag Length: 65-190 mm, 90-220mm, or 150-330 mm

Product Height: 40-60 mm

Packing Speed: 40-180 Bags/ Min

Power: 2.6 KW

Machine Dimensions: 4020*770*1450 mm

Machine Weight: 680 kg

Packaging & Delivery

Selling Units

set

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product advantages:
* Three servo motor version, high speed output, stable operation, saving time and film.

* Interface features easy and quick setting and operation.

* Self failure diagnosis, clear failure display.

*High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

* Temperature independent PID control, more suitable for packaging different materials.

* Positioned stop function, without sticking knife or wasting film.

* Simple driving system, reliable working, convenient maintenance.

* All control is realized through software, easy for function adjusting and technical upgraded.

Application:

Machine suitable to pack bread, biscuits, popsicle, cakes, pies, chocolate, instant noodles, drugs, mask, gauze, daily products, hardware, scrubber, glove, meat, soap, charcoal, socks, baby diaper and other solid objects with regular size.

Technical parameters:

Model	BS-350X	BS-450X	BS-600X
Packing speed	20-180 Bags/min	30-150 Bags/min	30-150 Bags/min
Support bag size	L(65-6000)×W(50-165)×H(5-60)mm	L(130-6000)×W(50-215)×H(5-80)mm	L(130-600)×W(50-215)×H(5-110)mm
Bag type	Pillow bag(back seal)	Pillow bag(back seal)	Pillow bag(back seal)
Film width	≤350mm	≤450mm	≤600mm
Film thickness range	30-80um	30-80um	30-80um
Power	220V 50HZ,2.6KW	220V 50HZ,2.8KW	220V 50HZ,3KW
Motor configuration	Full servo motors	Full servo motors	Full servo motors
Cutter moving type	Rotary cutter	Rotary cutter	Rotary cutter
Machine color	White/Red/Blue	White/Red/Blue	White/Red/Blue
Machine material	Frame-carbon steel,contact parts--stainless steel SUS304	Frame-carbon steel,contact parts--stainless steel SUS304	Frame-carbon steel,contact parts--stainless steel SUS304
Feeding conveyor	Chain /belt/pusher	Chain /belt/pusher	Chain /belt/pusher
Machine dimension	37707701450 mm	40208201450 mm	40209201450 mm
Machine weight	580 kg	680 kg	750 kg

Touch screen
*English and Chinese screen display(Also support other languages)
*With many color mould , easy for debugging and adjusted any parameters
*PLC computer system
*Self-development program
Level sensor to feed automatically

Detect sensor
*Detected product length to the machine , machine will make the corresponding bag length.
*Can make different length product at the same time, we call it is "Flexible length system ". No mater is 8cm length or 100 cm length, both can pack directly .

End Seal Cutter Area
*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.

*Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.

Feeding conveyor

*No need any pusher, just put your item on the belt ,machine will auto delivery.

*Contact panel is stainless steel sus 304.

*With food grade belt.

Control Pannel

* With emergency stop button, start button , stop button, and temperature table.

*The sealing temperature can be adjusted here or adjusted by the touch screen

Electric box

* Simple electric system

*Each wire have mark the sign, easy to identify

Install Film structure
*Motor Control Film Structure
*High quality grinding rollers,Pull evenly,more beautiful packaging
*Film position can be easily adjusted by hand shank

Date printer
ink roll date printer
*Can print dates and letters
*Each line can print 15 letters
*One ribbon roll have 100 metes,can print 20000 bags

Output Conveyor
*Fully automatic finished product transfer,can transfer the finished product to the specified area, process automation.
*The length of the conveyor can be customized!
