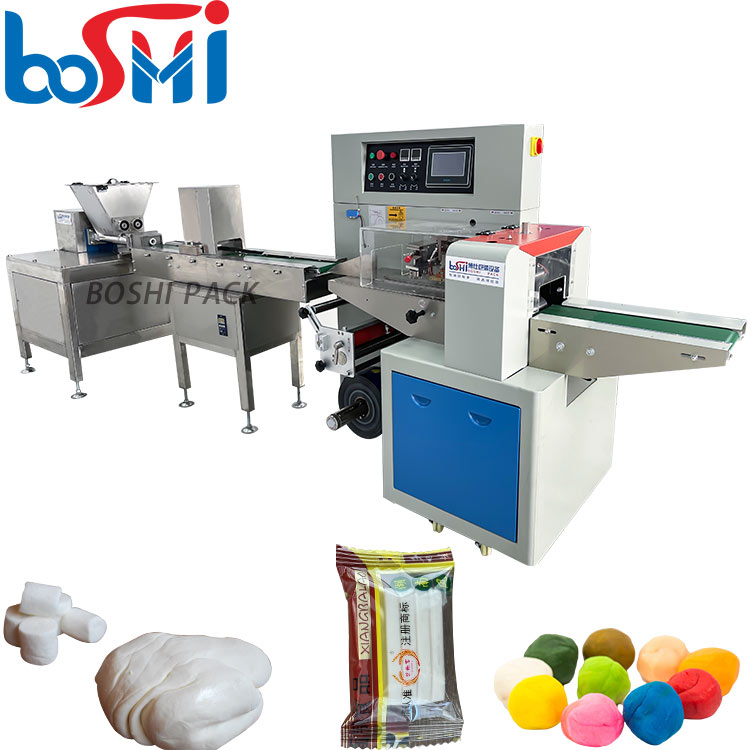

Auto Bouncing Ball Clay Packing Machine

$280-10800 /set

Min. Order:

1 set

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min, 20-100bags/min

Weight (KG): 1050

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Bags, Film, Foil, clay film wrapping

Packaging Material: Plastic, paper, plasticine film

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 110V/ 220V/ 380V

Place Of Origin: Guangdong, China

Brand Name: Boshi pack

Dimension(L*W*H): L2300* W950* H1300 mm

Warranty: 1 Year

Key Selling Points: clay packing machine

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-350XL

Package Cut Length: 65-200mm

Product Width: max.165mm

Product Height: Max.60mm

Film Thickness: 40-80μm

Packaging Material Width: max.350mm

Film Weight: max. 25KG

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Power Supply: 380V,50HZ

Power Usage: 5.5kw-7kw

Type: Multi-Function Packaging Machine

Showroom Location: Turkey, United Kingdom, United States, Philippines, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, None

Condition: New

Warranty Of Core Components: 1 Year

Applicable Industries: play dough, clay,super light dough, suger fondant, flour dough, air dough, oil clay, plasticine, Slime, wall holerepair plasticine, Car clay, play dough extruder machine, play dough packing machine, dough packing machine, clay extruder machine

Packaging & Delivery

Selling Units	:	set
Package Type	:	3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Auto bouncing ball clay packing machine crystal mud and slime Packaging Machine pie pizza dough ball cutting packing machine

BS-350XL suitable to pack Modeling Clay, Play dough ,Plasticine ,Sugar paste, Candy mud ,Child mud, Super light clay,Crystal mud ,Shisha,Snus,Snuff,Energy bar,Tamarind fruit, Fire mud,Slime,Self hardening sculpture modeling clay, Magnetic plasticine ,Terra-cotta plasticine clay and other sofe material product

PRODUCT ADVANTAGES:

* Full automatic soft materials production line with extruding and packing functions, Fast speed for cutting and packing. * Touch screen (for extruder & packing machine) combine two machine functions in one , make machine more smart. * Contact parts use food grade SUS304 stainless steel,save and clean. * Reduce manual operation and avoid touching products, no pollution and de-formation. *Accurate length cutting, high gram precision. '*Machine with stable performance,easy operation. * Independent PID temperature control, suitable for different film roller . * With auto alarm function,any alarm will show on touch screen

>>>Get Latest Price

Model	BS-350XL
Package cut length	65-200mm
Product width	max.165mm
Product height	max.60mm
Film thickness	40-80μm
Packaging material width	max.350mm
Film weight	max. 25KG
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
power supply	380V,50HZ
Power usage	5.5kw-7kw
Type of sealing	Pillow bag
Cutter type	Rotary cutter
Motor configuration	Dual frequency
Machine weight	1000kg
Machine dimensions	L2250XW1000XH1350mm

Extruder head

*Use food grade extruder mould

*Support to make square/round shape and pattern shape

*Easy to change different size extrude head

Mixing screws
Can stir all the soft materials to extrude tube.
Use thickness sus304
With strong engulfing ability

Extruder hopper

This picture including extrude hopper+mixing screws+extrude screws+extrude mould

Extruder hopper

Just need to put your items in this hopper, machine will auto

stir and extrude the shape you need.

Double extrude screws

Look here!! We use double extrude screws, not single screw! *.Increase extrusion capacity, high efficiency *.Increase stability and ensure product quality *.Suitable for multiple products

*Can according to your item width to make bigger

End Seal Cutter Area

*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.

*Angle inserting device is selected to make the bag beautiful and avoid curling at the sealing position.

Dough/clay /material cutter

Each material will be have it's own cutter.

Some material is sticky ,then will have teflon cutter.

We will according to your material to match suitable cutter to you.

Extrude head

*Use stainless steel 314 extruder mold.

*Support to make square shape , round shape and pattern shape.

*Easy to change different size extrude head

Install Film structure

*Motor Control Film Structure
*High quality grinding rollers,Pull evenly,more beautiful packaging
*Film position can be easily adjusted by hand shank

Mid- sealing structure

* With pulling film wheels+high quality copper +pressing wheels

*After this part , back bag sealing well.

>>>>>>Get package sample from us

About US:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:

Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Pillow Packing Machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);

1.How many grams product this machine can pack?

This machine generally can pack 5-500g product in one bag.(Just for reference,actual grams need to combine your product size)
2.How is packing speed?
Generally this machine speed can be 5-80 bags /min.
3.Is machine have product bag size limited?
Sure,this machine can pack max.film width is 350 mm.
Support bag size: L(50-200)×W(50-150)mm
(If need bigger,please contact us for design）
4.If I have several bag size,how to adjust on this machine?
For different bag length,we just need change parameter on the touch screen.
For different bag width,we just need according to your bag width to make different bag forming and extruder head to you

5.How machine to pack different grams product?

We make different grams product via product length,width,height to make different extruder head .
6.My product is hard/soft/sticky,did this machine can extruder and pack?
Generally is no problem,if you worry,please sent 15kg sample to us test,we will feedback test video.
