Bacon Dragon Fruit Slime Powder Packing Machine

Bacon Dragon Fruit Slime Powder Packing Machine

Get Latest Price

Payment Type:	Western Union,D/P,D/A,T/T,MoneyGram,CC VISA ,Cash
Min. Order:	1 set

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min

Weight (KG): 900

Function: FILLING, Wrapping, Labeling, Sealing, Date printing

Application: Food

Packaging Type: Stand-Up Pouch, Bags, Film, Foil, Pouch

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI POWDER FLOUR PACKING MACHINE

Dimension(L*W*H): L 1320 * W 920 * H 1392 mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-420P

Film Width: Max.420mm

Film Thickness: 0.03-0.1mm

Bag Width: 50-200 mm

Bag Length: 50-300 mm

Packing Speed: 10-70 bags/ min

Type Of Sealing: Pillow bag or gusset bag or quad side seal

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Air Consumption: 0.65 mpa

Gas Consumption: 0.3 cubic meter/ min

Type: Multi-Function Packaging Machine

Showroom Location: Canada, Germany, Viet Nam, Philippines, Saudi Arabia, India, Spain, Chile, UAE, Colombia, Romania, None

Condition: New

Warranty Of Core Components: 1 Year

Applicable Industries: hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other, powder packing machines, flour packaging machine

Packaging & Delivery

Selling Units

set

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Applications:

Suitable for filling and packing varieties of powders, such as spice, flour, milk powder, coffee powder, fruit powder,cocoa powder, grain powder, wheat flour, vitamin powder, chemical powder, paint powder,and etc.

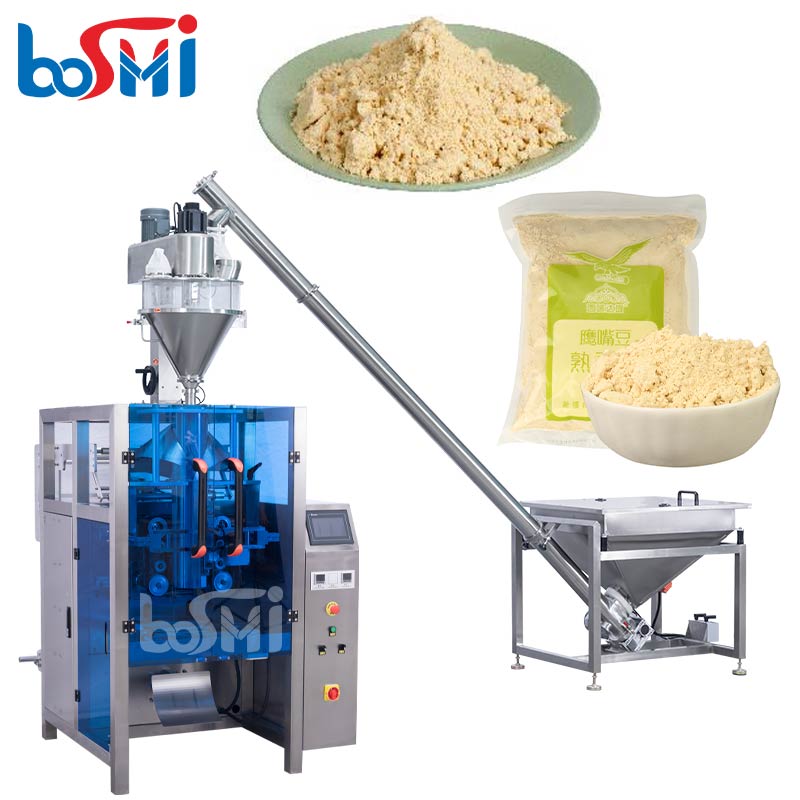

Whole machine main including 3 parts:

1) Powder feeding machine
2) Auger filler
3) Packing machine host
4) Finished products conveyor( If needed)

Main Features:
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with Filling Machine .

Technical Parameters:

Model	BS-420P
Film width	Max.420mm
Film thickness	0.03-0.1mm
Bag width	50-200 mm
Bag length	50-300 mm
Packing speed	10-70 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal and gusset bag
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.3 cubic meter/ min
Machine dimensions	108013001400 mm
Machine weight	600 kg
Auger filler
Weighting and filling system	Auger screw
Weighting range	10-5000g (Different product have different weighting range )
Accuracy:	Volume<100g.Bias:0.5-1gVolume:100-5000g.Bias:0.5%-1%
Filling speed:	10-60 bags/min
Filler hoper volume	50 L
Total power:	1.5 kw
Weight	200KG

>>>Get quotation from us

For smaller Mini powder packing machine ,you may like follow machine BS-320P

Click the picture, you will see it's details----

420P machine main parts:

Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.

Full implement the humanizes automatic operation

Packing machine touch screen

English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment

Install film structure

Use motor delivery the film The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running

Open auger filler hopper

Material: Food Grade 304 Stainless Steel
Feature:

1.Suitable to package free-flowing or poor-flowing powder.
2.Filling the powder use servo motors, with high speed, high precision, long life etc.
3.For flowable materials together with the corresponding discharge port o valve to prevent material off.

Weighting auger screw

For small grams ,middle gram and big grams, we equip different auger screw.

High accuracy to weight the powder.

BOSHI machine control the grams by weighting screw turns

Powder feeding machine

Suitable to delivery many types powders

Use motor control, stable feeding powder.

Big auger screw to rotate powder to the auger filler

Can be connected Powder Packing Machine to achieve fully automatic working.

Bag forming tubes

Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.

Mid-sealing structure

The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

Double pulling Film
Structure High quality grinding wheel,
Pull evenly,more beautiful packaging

Date printer
Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags

Cutter sealing device

Pull rod type sealing structure,stable sealing and make packing speed more fast.Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid curling at the sealing position.
