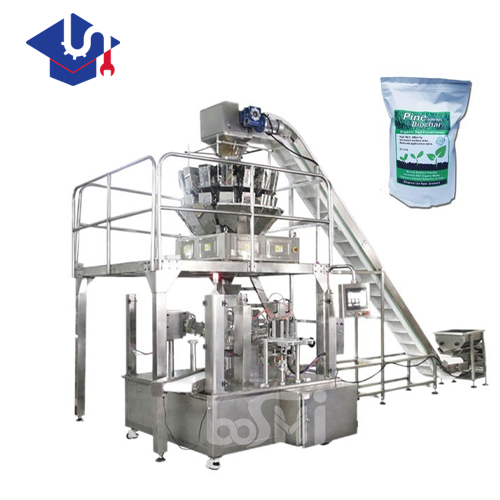

Organic Fertiliser Standup Pouch Packing Machine

Organic Fertiliser Standup Pouch Packing Machine

Name: High Speed Automatic Doy Pack Packaging Machine Rotary Type Automatic Premade Spout Pouch Ziplock Packing Machine1
Uploaded: 2025-02-20T10:55:05+08:00
Description: The fertilizer bag feeding machine (i.e. bag-feeding fertilizer packaging machine) reduces the dependence

$208001-1 Set/Sets

$195002-9 Set/Sets

$13900≥10Set/Sets

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Visa,cash or others
Incoterm:	CFR,FOB,CIF
Transportation:	Land,Ocean,Air
Port:	FOSHAN

Option:

BS-200G
Premade bag packing machine
doypack packing machine

Contact Now

Product Description

Product Attributes

Model No.: BS-200G

Brand: BOSHI

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min

Weight (KG): 1800

Function: Wrapping, Labeling, Sealing, Date Printing

Packaging Type: Bags, Film, Foil, Pouch

Voltage: 220v

Brand Name: BOSHI

Dimension(L*W*H): 1665mm*1295mm*1310mm(L *W*H)

Warranty: 1 Year

Model: BS-200G

Film Thickness: 0.03-0.1mm

Packing Speed: 20-50 pack/min

Equipment Material: 304 stainless steel (parts in contact with food)

Main Engine Power: 3KW

Gas Consumption: 0. 6m³/min

The Machine Size: 2160mm*1600mm*1500mm(L *W*H)

Packing Film Materials: OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.

Bag Length: 100-300 mm

Warranty Of Core Components: 1 Year

Packaging & Delivery

Selling Units

Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

High Speed Automatic Doy Pack Packaging Machine Rotary Type Automatic Premade Spout Pouch Ziplock Packing Machine1



Product Description

The fertilizer bag feeding machine (i.e. bag-feeding fertilizer Packaging Machine) reduces the dependence on complex algorithms while improving production efficiency and reliability through mechanical structure optimization and functional modular design. Its core advantages are as follows:

1. Efficient and stable mechanical structure design

Dual scale collaborative operation: adopting dual bucket scale design (single bucket scale or dual bucket scale optional), two sets of weighing devices can work alternately or superimposedly, and the packaging speed is more than 1.5 times higher than that of a single scale, meeting the needs of large-scale fertilizer production

Corrosion-resistant material: parts that contact fertilizers (such as weighing buckets and bag clamping mechanisms) are made of 304 stainless steel, which effectively resists the corrosion of fertilizers and prolongs the life of the equipment

Modular combination: linked with conveyors, bag sewing machines and other equipment to achieve full-process mechanized operation from filling to sealing, reducing manual intervention

2. Accurate measurement and low loss

Three-level gravity feeding: through fast, medium and slow three-level feeding speed control, combined with sensor feedback, the measurement error is ≤ ±0.2%, reducing fertilizer waste

Packaging material recycling: prefabricated bags that have not been successfully opened can be reused, and with the automatic detection function (such as no bag opening and no material falling), the comprehensive packaging material loss rate is less than 1%

3. Convenient operation and simplified maintenance

Physical buttons and intuitive interface: Equipped with a touch screen or PLC control panel, it supports one-button adjustment of bag clamping width, sealing temperature and other parameters without complex algorithm adjustment

Self-diagnosis and fault alarm: Mechanical faults (such as abnormal air pressure and abnormal heat sealing temperature) are prompted by physical alarms to reduce downtime

Easy to clean and maintain: The design of detachable conveyor belt and centralized distribution of lubrication points is convenient for daily cleaning and maintenance, and can adapt to dusty production environments

4. Functional configuration with strong adaptability

Multi-material compatibility: By replacing the metering device, it can handle granular, powder, block fertilizers (such as compound fertilizers, blended fertilizers) and corrosive chemical raw materials

Flexible bag type adaptation: Supports a variety of bag types such as prefabricated bags and zipper bags, with smooth and beautiful sealing, and the bag width adjustment is directly controlled by the motor without dynamic algorithm calibration

5. Environmental protection and safety design

Oil-free vacuum pump and low energy consumption: Oil-free vacuum technology is used to avoid pollution, combined with variable frequency speed regulation motor to reduce energy consumption

Protection and stability: Mechanical safety designs such as overload protection and overcurrent protection ensure stable operation of the equipment under complex working conditions
