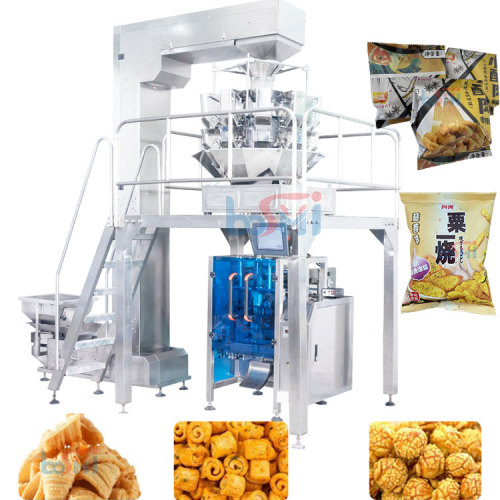

Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen
Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen

Multihead Weigher Snacks Packing Machine for Potato Chips and Banana Chips with Nitrogen

Get Latest Price
Payment Type:Western Union,L/C,D/P,D/A,T/T,MoneyGram,CC
Min. Order:1 set
Power:
Option:
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Production Capacity: 20bag/min, 40bag/min, 25bag/min, 15bag/min, 50bag/min, 30bag/min

Weight (KG): 300

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Stand-Up Pouch, Bags, Film, Foil, Pouch

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Dimension(L*W*H): L 1350 * W 1000 * H 1400 mm

Warranty: 1 Year

Key Selling Points: Easy To Operate

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

Model: BS-420G

Film Width: Max.420mm

Film Thickness: 0.03-0.1mm

Bag Width: 50-200 mm

Bag Length: 50-300 mm

Packing Speed: 10-70 bags/ min

Type Of Sealing: Pillow bag or gusset bag

Packing Material: OPP/CPP, OPP/CE,PET/PE etc.

Air Consumption: 0.65 mpa

Gas Consumption: 0.3 cubic meter/ min

Type: Multi-Function Packaging Machine

Showroom Location: United Kingdom, United States, Italy, Peru, Saudi Arabia, Spain, UAE, Japan, Malaysia, Australia, None

Condition: New

Warranty Of Core Components: 1 Year

Applicable Industries: hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other, bakery hardware

Packaging & Delivery
Selling Units : set

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
150g 250g 1kg Puffed Food Popcorn Packing Equipment Puffed Food Snacks Food Small Popcorn Bagging Pouch Packing Machine1
Product Description
Whole machine main  including 4 parts:
1) Z type bucket elevator
2) Computer combination scale
3) Platform
4) Packing machine host
5) Finished products conveyor( If needed)
Main Features:
1)Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automation and intelligent ,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with Filling Machine .
Applications:
Suitable for Meatball, macaroni, hamburgers, popcorn, dry pasta,oats, puffed food, french fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, frozen food, chicken leg,hardware and medicine such particle, platy, strip and irregular shape.


Standard Features:
1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.

>>>Get quotation from us
Technical Parameters:
Model
BS-420G
Film width
Max.420mm
Film thickness
0.03-0.1mm
Bag width
50-200 mm
Bag length
50-300 mm
Packing speed
10-70 bags/ min
Type of sealing
Pillow bag,3 or 4 side seal and gusset bag
Packing material
OPP/CPP, OPP/CE,PET/PE etc.
Air consumption
0.65 mpa
Gas consumption
0.3 cubic meter/ min
Machine dimensions
1080*1300*1400 mm
Machine weight
600 kg
Multi-weigher
Weighting and filling system
Head weighers
Weighting range
10-3000g
(Different product have different weighting range )
Accuracy:
Bias:+-0.5g
Filling speed:
65bags/min
Hoper volume
1.6/2.5L/5L
Total power:
1.0kw
Weight
380KG
The details of the main parts:
Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operation




Packing machine touch screen
English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment


Computer combination weighter
Automatic calculation combination set weight
Precision electronic sensor, microcomputer,
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.




Viabrator hopper
Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.




Install film structure
Use motor delivery the film
The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running



Z Type feeding elevator

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.





Multi-head weigher
When the weighing hopper under the storage hopper is empty after discharging, the storage hopper is opened, the material is discharged to the weighing bucket, and the weighing bucket starts to weigh.




Date printer

Support ribbon roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags



Bag forming tubes
Lapel Bag maker
The bag shape is formed by folding the rolled film through the metal panels on both sides.
We use solid bag forming tubes to form the bag. One bag former can make one bag width, so if you have 2 bag width , need to use two bag forming tubes.




Mid-sealing structure
The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.
Double pulling Film Structure
High quality grinding wheel,
Pull evenly,more beautiful packaging


Cutter sealing device:
Pull rod type sealing structure,stable sealing and make packing speed more fast.
Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.
CE CERTIFICATES:


About Us:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);
Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
CONTACT US TO GET LATEST PRICE


CONTACT US TO GET LATEST PRICE

FAQ:
1.Why we choose you?
* Professional team 24 hours provide service for you
*13 months warranty,any main machine parts can be replacement
* Oversea service is provided

2.What is your payment term?
We support TT,Credit Card,Western Union,etc.

3.Are you manufacturer or trading company?
We are 100% real packing machine manufacturer.Any time online video will be supported.

4.You have engineer?can you design machine according my special product?
My boss is our biggest engineer with 15 years packing machine experience.If needed,we can arrange online video with you and our engineer.That will be more efficient communication.

5.How to check your machine quality after machine finished?
Machine photos and test videos will be provided to before your balance. Also welcome you and third party to detect our machine.
6.How can I trust you will send machine to us after full payment?
We are a real factory with business license and certificate. Alibaba already let staff to inspect our factory.You pay via Alibaba trade assurance service,if we receive your payment,didn’t sent machine to you.Alibaba will off our online store and sent all your money back.
