Automatic Bowl Nut Screw Counting and Packaging Machine

Automatic Bowl Nut Screw Counting and Packaging Machine

$49991-1 Others

$47992-2 Others

$4399≥3Others

Payment Type:	Western Union,L/C,D/P,D/A,T/T,MoneyGram
Transportation:	Ocean,Land,Air
Port:	FOB Guangzhou

power:

Option:

BS-320B
Date printer
Motor

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: BS-320B

Application: Food

Packaging Type: Bags, Film

Packaging Material: Plastic

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220v

Place Of Origin: Guangdong, China

Brand Name: BOSHI PACK

Dimension(L*W*H): L1100mm*W1800mm*H1460mm

After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Plc

Model: BS-320B

Film Width: Max.320mm

Bag Size: L35-150m,W25-150mm

Packing Speed: 1-40 bags/min

Type Of Sealing: Pillow bag or 3-side or 4 side bag

Air Consumption,Voltage Power: 0.4-0.8Mpa AC220V,50Hz, 3KW

Machine Dimensions: L1100mm*W1800mm*H1460mm

Machine Weight: N.W 300kg, G.W 350kg

Feeding Method: Vibrating plate

Equipment Appearance: stainless steel

Type: Wrapping Machine

Condition: New

Warranty Of Core Components: 1 Year

Certification: Ce

Marketing Type: Ordinary Product

Type Of Packaging: Pouch, Bags

Packaging Materials: Paper

Degree Of Automation: Automatic

Power Type: Electric

Warranty Period: 1 Year

Mechanical Test Report: Provided

Weight: 500 Kg

Packaging & Delivery

Selling Units	:	set
Package Type	:	3 plywood wooden box packaging

The file is encrypted. Please fill in the following information to continue accessing it

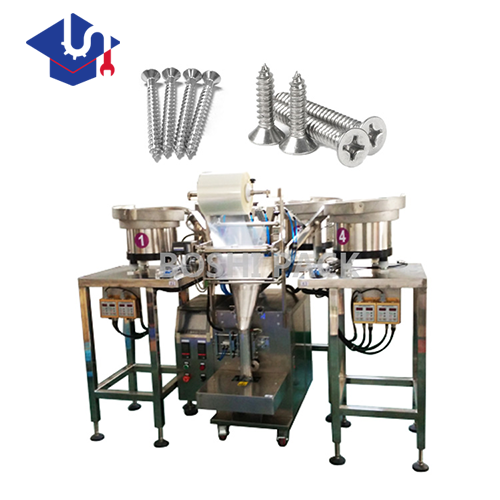

Automatic Buttons Two Bowl Weighting and Counting Packing Machinery Nut Bolt Nail Screw Package Machine1



Product Description

Model	BS-320B
Feeding method	Vibrating plate
Counting method	Fiber point
Film width	Max.320 mm
Film thickness	0.03-0.1mm
Bag size	40-150 mm
Bag length	L35-150m，W25-150mm
Packing speed	1-40 bags/min
Air consumption	0.4-0.8Mpa
Voltage power	AC220V/50Hz P≈3KW
Machine dimensions	L1100mmW1800mmH1460mm
Machine weight	N.W 300kg, G.W 350kg
Type of sealing	Pillow bag or 3-side sealing
Packing material	OPP/CPP, CPP/PE and other heat-sealable composite materials

1. Flexible adaptation to materials of various specifications

Customized vibration plate design: vibration plate tracks are customized for different screw shapes (such as long screws, short screws, special-shaped parts), supporting screw packaging with diameters of 1-12mm and lengths of 5-50mm, with strong versatility

Multi-bag compatibility: supports prefabricated bag types such as three-side seals, back seals, and self-supporting bags. The bag width is quickly adapted through mechanical adjustment (such as 50-150mm), without the need for complex algorithm calibration

2. Convenient operation and low maintenance cost

Optimized human-machine interface: equipped with a 7-inch touch screen and PLC control system, intuitive parameter settings (such as bag length, sealing temperature), supports multi-language operation interface, and reduces the operating threshold.

Modular cleaning design: removable conveyor belt, centralized lubrication point distribution, easy to quickly clean dust and metal debris, short maintenance time
