Product Description

Product Attributes

Weight (KG): 680

Function: Wrapping, Labeling, Laminating, Sealing, packing, date printing

Application: Food

Packaging Type: Stand-up Pouch, Bags, Film, Foil

Packaging Material: Plastic, Paper, Opp/Cpp/Pe

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220v,50/60hz

Place Of Origin: Guangdong, China

Brand Name: Boshi pack

Dimension(L*W*H): (L)4020*(W)745*(H)1450mm

Warranty: 1 Year

Key Selling Points: Multifuntional

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

After-sales Service Provided: Video technical support, Free spare parts

Bag Width: 50-160mm

Bag Length: 90-220mm

Packing Speed: 40-180 Bags/ Min

Film Width: 350 Mm

Film Thickness: 0.03-0.1mm

Product Height: 40-60 mm

Film Material: OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.

Packing Type: pillow bag, or 4 sides bag

Weight: 680 KG

Machine Dimensions: 4020*770*1450 mm

Packaging & Delivery

Selling Units

set

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Application:

Machine suitable to pack bread, biscuits, popsicle, cakes, pies, chocolate, instant noodles, drugs, mask, gauze, daily products, hardware, scrubber, glove, meat, soap, charcoal, socks, baby diaper and other solid objects with regular size.

Technical parameters:

Model	BS-350	BS-450	BS-600
Packing speed	20-180 Bags/min	30-150 Bags/min	30-150 Bags/min
Support bag size	L(65-330)×W(50-165)×H(5-60)mm	L(130-450)×W(50-215)×H(5-75)mm	L(130-450)×W(50-215)×H(5-75)mm
Bag type	Pillow bag(back seal)	Pillow bag(back seal)	Pillow bag(back seal)
Film width	≤350mm	≤450mm	≤600mm
Film thickness range	30-80um	30-80um	30-80um
Power	220V 50HZ,2.6KW	220V 50HZ,2.8KW	220V 50HZ,3KW
Motor configuration	Full servo motors	Full servo motors	Full servo motors
Cutter moving type	Rotary cutter	Rotary cutter	Rotary cutter
Machine color	White/Red/Blue	White/Red/Blue	White/Red/Blue
Machine material	Frame-carbon steel,contact parts--stainless steel SUS304	Frame-carbon steel,contact parts--stainless steel SUS304	Frame-carbon steel,contact parts--stainless steel SUS304
Feeding conveyor	Chain /belt/pusher	Chain /belt/pusher	Chain /belt/pusher
Machine dimension	37707701450 mm	40208201450 mm	40209201450 mm
Machine weight	580 kg	680 kg	750 kg

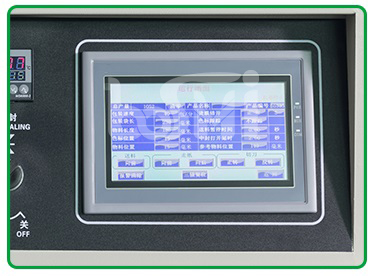

Touch screen
*English and Chinese screen display(Also support other languages)
*With many color mould , easy for debugging and adjusted any parameters
*PLC computer system
*Self-development program
Level sensor to feed automatically

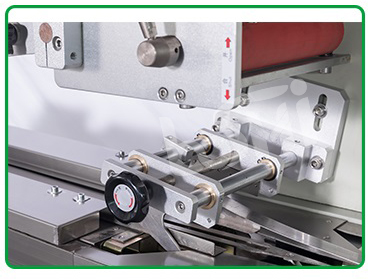

Bag former
*Adjusted bag former device
*Can make different bag width,for different width product no need to change bag former.One is enough to meet all the width.

End Seal Cutter Area
*Constant temperature heat sealing cutter is used to seal the front and rear ends of packaging products.

*Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.

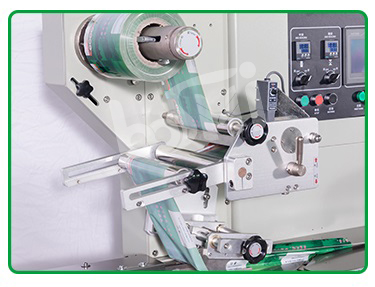

Install Film structure
*Motor Control Film Structure
*High quality grinding rollers,Pull evenly,more beautiful packaging
*Film position can be easily adjusted by hand shank

Date printer
ink roll date printer
*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags

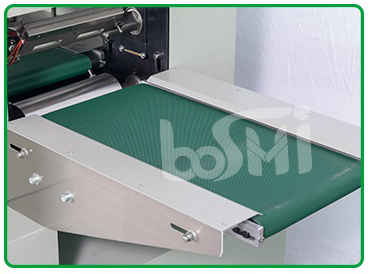

Output Conveyor
*Fully automatic finished product transfer,can transfer the finished product to the specified area, process automation.
*The length of the conveyor can be customized!

PRODUCT ADVANTAGES:

* Three servo motor version, high speed output, stable operation, saving time and film. * Interface features easy and quick setting and operation. * Self failure diagnosis, clear failure display. *High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy. * Temperature independent PID control, more suitable for packaging different materials. * Positioned stop function, without sticking knife or wasting film. * Simple driving system, reliable working, convenient maintenance. * All control is realized through software, easy for function adjusting and technical upgraded.

>>>For product videos ,please CLICK

CE CERTIFICATES:

Get the latest price and videos ,please click here!!

More about machine :

>>>CONTACT US TO GET LATEST PRICE AND CATALOG>>>

More About Us:

>>>CONTACT US TO GET LATEST PRICE AND CATALOG

Q:ls your machine usefull servo motors or Single frequency or dual frequency?

A: All of our flow series machine,we directly use full servo motors,as it is a trends. So machine will have empty bag function,Anti-cutting function and memory function. If you want to know more about this 3 function ,please contact us.

Q:What kind of product this machine can pack?

A: This machine can pack solid ,loose ,multi-pack product.(Just for reference,actual grams need to combine your product)

Q:How is packing speed?

A: Generally this machine speed can be 20-150bags/min.

Q:Is machine have bag size limited?

A: Sure,this machine can pack max.film width is 350mm. It can make bag length :65-300mm It can make bag width:10-200mm

Q:If I have several bag size,how to adjust on this machine?

A: For different bag length,we just need change parameter on the touch screen. For different bag width,we just need according to your bag width to make different bag forming to you

Q:Can I pack different length product at the same time?

A: Yes dear,this machine use full servo motors,equip with flexible length system.
