Vertical Rice and Snack Packing Machine for Small Nuts, Chips, and Sugar

Vertical Rice and Snack Packing Machine for Small Nuts, Chips, and Sugar

$36881-1 Others

$36002-2 Others

$3288≥3Others

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Weight (KG): 400

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Bags, Film, Foil

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220v

Place Of Origin: Guangdong, China

Brand Name: Boshi pack

Dimension(L*W*H): 1200*700*1520 Mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

After-sales Service Provided: Video technical support, Online support, Free spare parts

Model: BS-320G

Film Width: Max.320mm

Film Thickness: 0.03-0.1 mm

Bag Width: 40-150 mm

Bag Length: 50-200 mm

Packing Speed: 30-60 bags/ min

Type Of Sealing: Pillow bag or 3-side or 4 side bag

Air Consumption: 0.65 mpa

Machine Dimensions: 1200*700*1520 mm

Machine Weight: 400 kg

Packaging & Delivery

Selling Units

set

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Main Features:

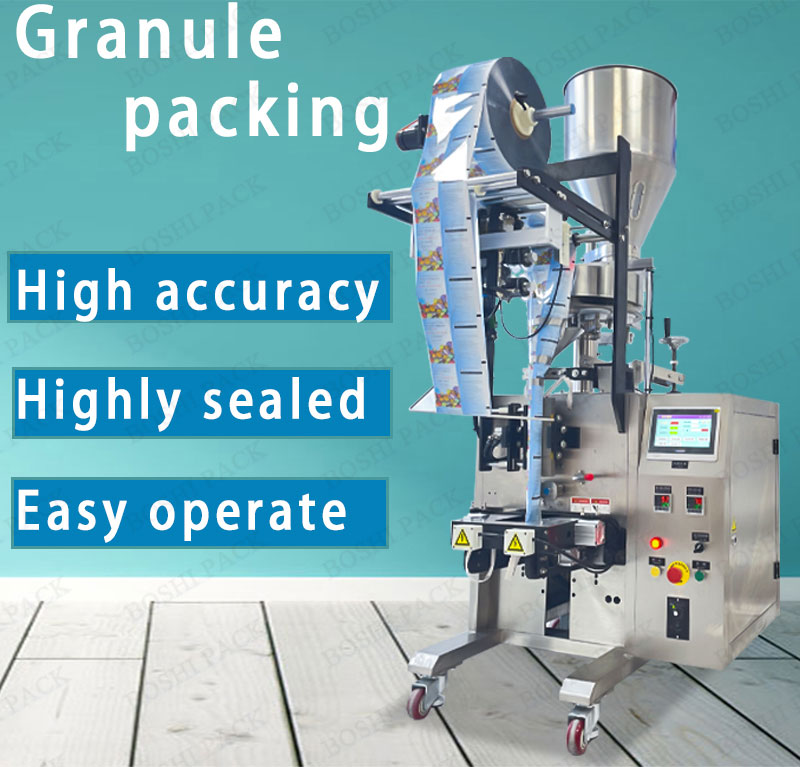

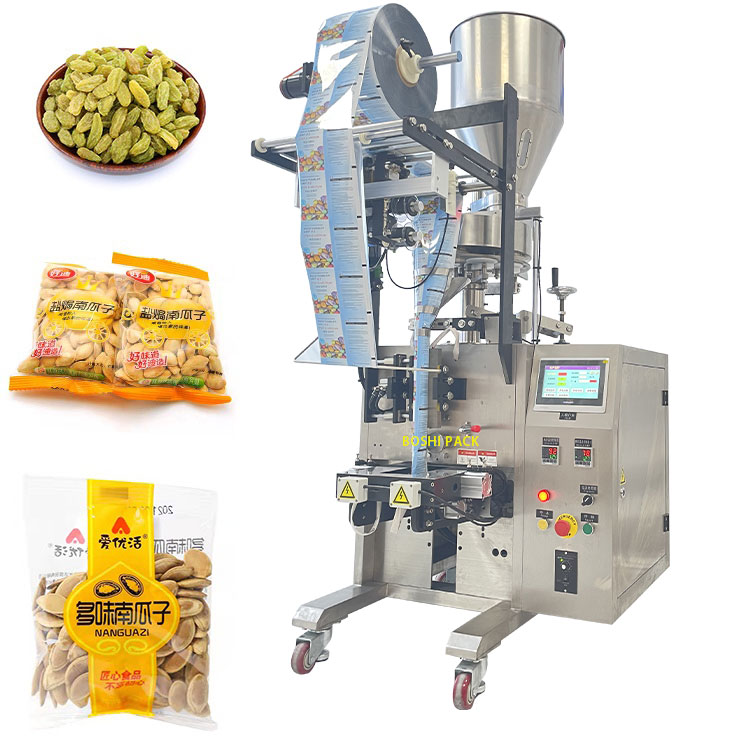

Auto mini vertical Granule Packing Machine
*With auto measure function
*With sensor detect function
*With smart touch screen control, Packing speed and bag length can be change via touch screen.
Simple operation and stable performance ,SUS304 stainless steel of food grade is adopted

Applications:

Peanuts, popcorn , dates, rice , beans, seeds, nuts, sugar, salt, pistachiop, dried fruits, walnuts, coffee beans, chips, meat balls,frozen foods and etc.

Technical Parameters:

Model	BS-320G
Film width	Max.320mm
Film thickness	0.03-0.1mm
Bag width	40-150mm
Bag length	50-200 mm
Packing speed	30-60 bags/ min
Type of sealing	Pillow bag,3 or 4 side seal
Packing material	OPP/CPP, OPP/CE,PET/PE etc.
Air consumption	0.65 mpa
Gas consumption	0.25 cubic meter/ min
Machine dimensions	*12007001520 mm*
Machine weight	250kg
Volumetric cup
Weighting and filling system	Volumetric cup
Weighting range	1-250g (Different product have different weighting range )
Accuracy:	Bias:0.1-2g
Filling speed:	10-50 bags/min

>>>Get quotation from us

Product advantage：
1. The machine is controlled by double SCM (single chip) system and a LCD in English display.
2. The clear man-machine interface is easy to understand. All operation by press keys for: temperature setting, length setting, counting setting, photo control, heating, mixing, move, run, stop.
3. Special and particular intelligence protection take the machine to auto stop to get the protection and display the fail information when the machine fail in temperature control, color mark hunt control and film finish.
4. Two temperature controller to control the sealing temperature
5. The bag length is controlled by electronic photo switch. The bag length will be cut accurately. When the photo errs, the
machine will stop and display “photo errs”.
6. When the packaging film is empty or broken, the machine will stop and display “film end”.
7. The intelligent counter: you can set the counter to a data you need, the machine will stop and take alarm when reach the data you set.

8. The working is stable, easy to use, high yield and low wastage.

320G machine main parts:

1)Automatic weighting +filling +sealing together .
2)Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.

3)Full implement the humanizes automatic operation

Packing machine touch screen

Brand:Weinview touch screen
Language: Support multi- languages
Function: Bag length and product length can be set via touch screen.

Install film structure

Use motor delivery the film The linkage film rolling shaft coordinates the pulling film process, which is suitable for more materials film rollers and can smoother film running

Material hopper

Material: Food Grade 304 Stainless Steel
Feature: 1.Suitable to package granule priduct.
2.Filling the materials use servo motors, with high speed, stable filling , long life etc.

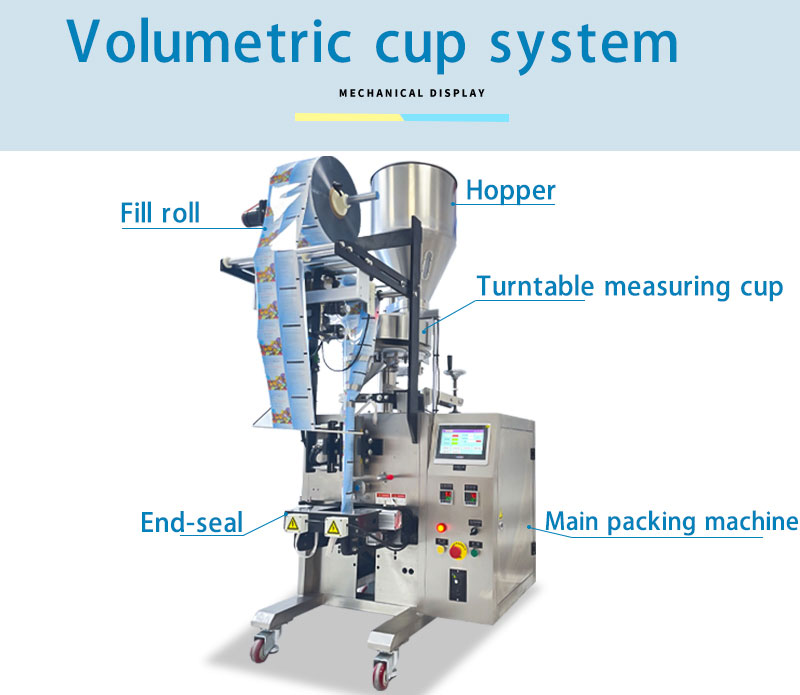

Volumetric cup measure system

It suitable to small similar granules like beans, nuts, seeds, sugar, salt, rice,etc.

High accuracy to weight the grams

BOSHI machine control the grams by cup size

Date printer
Support ribbon roll date printer
Can print dates and letters
Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000 bags

If need to print logo,picture , QR code,bar, then need to use thermal overprinting .

Bag forming tubes
Bag former is made of 304 stainless steel and
driven by a motor.
The packing film is pulled into the bag former automatically.
*The packaging is simple and beautiful, with a humanized design.
Can according to your different bag width to make different bag former. One machine can pack various bag widths.

Cutter sealing device
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoid sticking blades and wasting materials.
According to customer needs,machine support to choose back seal, 3 sides seal or 4 side seal.

Mid-sealing structure
Single Pulling Film Wheels
Structure
High quality grinding wheel,
Pull evenly,more beautiful packaging

For big bag packing machine ,you may like follow machine BS-420G CLICK BELOW PICTURE, you will see it's details----

CE CERTIFICATES:

About Us:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder Packing Machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);

Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)

CONTACT US TO GET LATEST PRICE

CONTACT US TO GET LATEST PRICE

FAQ:

1.Why we choose you?

* Professional team 24 hours provide service for you

*13 months warranty,any main machine parts can be replacement

* Oversea service is provided

2.What is your payment term?

We support TT,Credit Card,Western Union,etc.

3.Are you manufacturer or trading company?

We are 100% real packing machine manufacturer.Any time online video will be supported.

4.You have engineer?can you design machine according my special product?

My boss is our biggest engineer with 15 years packing machine experience.If needed,we can arrange online video with you and our engineer.That will be more efficient communication.

5.How to check your machine quality after machine finished?

Machine photos and test videos will be provided to before your balance. Also welcome you and third party to detect our machine.

6.How can I trust you will send machine to us after full payment?

We are a real factory with business license and certificate. Alibaba already let staff to inspect our factory.You pay via Alibaba trade assurance service,if we receive your payment,didn’t sent machine to you.Alibaba will off our online store and sent all your money back.
