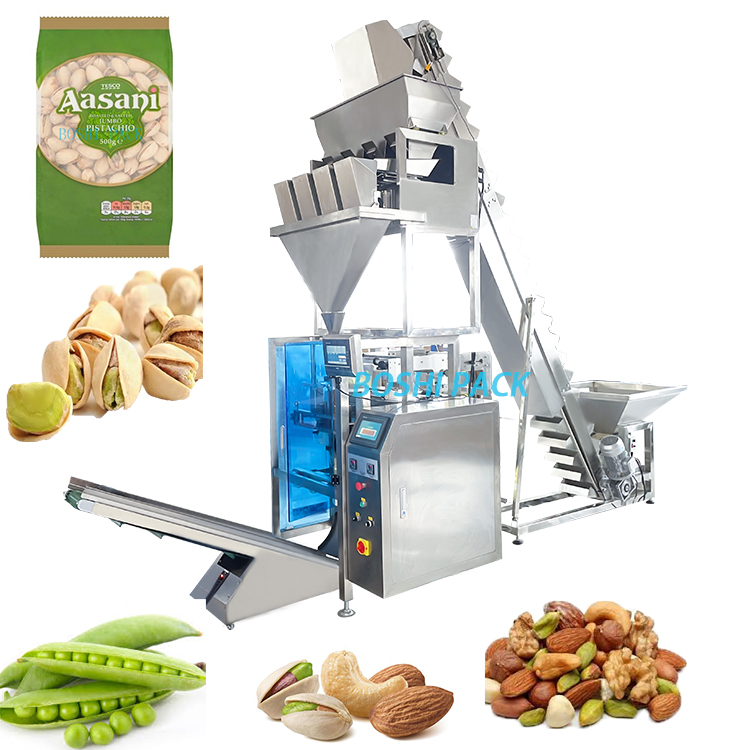

Nuts and Peanut Packaging Machine

$157001-4 Others

$140005-9 Others

$7600≥10Others

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Weight (KG): 800

Function: Wrapping, Labeling, Sealing, Date Printing

Application: Food

Packaging Type: Bags, Film, Foil

Packaging Material: Plastic, Paper

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220/380V

Place Of Origin: Guangdong, China

Brand Name: BOSHI

Dimension(L*W*H): 1080*1300*1400mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor

After-sales Service Provided: Video technical support, Online support, Free spare parts

Model: BS-420G-4

Packing Speed: 5-60 bags/ min

Support Bag Size: L(80-300 )*W(100-200 )mm

Bag Type: Pillow bag(back seal) /3side seal /4 side seal

Film Width: ≤420mm

Measure System: 4 heads weigher weighting

Measuring Range (max): 1500 ml

Packing Accuracy: ±0.5-2.0 g

Film Thickness Range: 30-80um

Power: 220 V /380 V ,50 HZ/60 HZ,3KW

Packaging & Delivery

Selling Units

set

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Applications:
Suitable for similar shape granular products, such as chips, peanut, nuts,dried fruit,popcorn,dates,coffee bean, chips,dog food, seeds,beans,walnuts, pistachios, salad vegetables ,screws, buckles, and etc.

Standard Features:

1. The machine use high precision servo film transport system, PLC Program Control, developed touchable Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Operation is more simple, perfect. It is the first choice of food packaging industry to Improve the production efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. Bag end + middle back sealing temperature control independently, suitable for pure PE, CPP/OPP, BOPP/CPP, PE/polyethylene, PE/aluminum plating, pet/PE, PP, and other heat-sealing packaging materials.
4. It completes the whole procedure of filling, measuring, bagging, date printing, charging(exhausting), product out-putting automatically.
5. High precision, high efficiency without crash the materials.
6. Packaging style diversified, back sealing, gusset bag, string bags, punching, etc.
7. Work environment quiet, low noise, saving energy.
8. A complete set of equipment is economical.

>>>>>> More videos and machine pictures

Technical parameters:

Model	BS-420G-4
Packing speed	5-60 bags/ min
Support bag size	*L(50-300 )W(50-200 )mm**
Bag type	Pillow bag(back seal) /3side seal /4 side seal
Film width	≤420mm
Measure system	4 heads weigher weighting
Measuring range (max)	3000 ml
Packing accuracy	±0.5-2.0 g
Film thickness range	30-80um
Power	220 V /380 V ,50 HZ/60 HZ,2.2KW
Air consumption	1.0 Mpa
Gas consumption	0.4 m³/ min
Machine material	Stainless steel SUS304
Machine weight	600 kg
Machine dimension	*108013001400mm*
Applications	Suitable for granular products, such as, peanut, nuts,dried fruit,popcorn, dates, coffee bean, chips, seeds, walnuts, pistachios, screws, buckles, and etc.

>>>>>>Get latest price

The details of the main parts:

Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.

Full implement the humanizes automatic operation

Packing machine touch screen

English and Chinese screen display
Self-development program Level sensor to feed automatically，Stable function English and Chinese screen display Simple operation
PLC computer system Easy adjustment

Computer combination line weighter

Automatic calculation combination set weight

Precision electronic sensor, microcomputer,
automatic calculation combination set weight.
Can equip 2 heads, 4heads, 10 heads,14 heads,etc.More heads weigher , will have higher accuracy and faster speed.

Cutter sealing device:

Pull rod type sealing structure,stable sealing and make packing speed more fast.

Constant temperature heat sealing cutter is
used to seal the front and rear ends of packaging products. Angle inserting device is selected to make the bag beautiful and avoid
curling at the sealing position.

Chain feeding elevator

Full automatic feeding. It can continuously
send granules to the upper feeding device,
especially suitable for quantitative packaging,
process automation.

Date printer

Support ribbon roll date printer

*Can print dates and letters
*Each line can print 15letters
*One ribbon roll have 100 metes,can print 20000bags

Install film structure

Use motor delivery the film

The linkage film rolling shaft coordinates the
pulling film process, which is suitable for more
materials film rollers and can smoother film running

Mid-sealing structure

The slot-type central positioning of the bag maker,will not let shake to affect pulling film deviation.

Double pulling Film Structure

High quality grinding wheel,
Pull evenly,more beautiful packaging

>>>>>>Get package sample from us

About Us:

FOSHAN BOSHI PACKING MACHINERY CO., LTD.

Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience. Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule Packing Machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid Packing Machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);

Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink Packing Machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
